Globe Valves

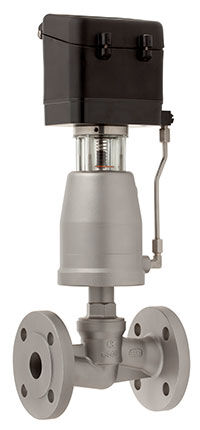

Type 7037 – Flange valves

Integrally flanged globe style control valve with ANSI 150 or DIN flanges. Compact design and available with integrated positioners or direct acting. 316 stainless steel body and elastomeric plug seal for tight shutoff.

  • Size

    Size:

    1/2" - 3"

  • Pressure

    Pressure:

    580psi, ANSI #150

  • Material

    Material:

    Stainless steel CF8M

  • Temperature

    Temperature:

    Media temperature -22 °F up to 392 °F

    Applications from -148°F up to 428 °F

Connection

Flange acc. to DIN EN 1092-1

Flange ANSI #150 acc. to ANSI B16.5
Positioner

Digital positioner type 8049

- 2-wire, 4-wire

- Ex-Pro explosion-proof

- IO-Link

- Integrated process controller IPC

Pneumatic and electro-pneumatic positioner type 8047

- 2-wire

- Ex version
Accessories

Inductive limit switches
Actuator variants

Piston actuator of

- Brass (chrome plated)

- Stainless steel

- Polymer

Stainless steel diaphragm actuator
Application

Gases, vapours, liquids
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T2 X Gb

II 2D Ex h IIIC 85°C…220°C X Db
Versions

Low temperature version

Pressure balanced version

Degreased version, Silicon or PTFE-free version

…
Approvals, certificates and declarations

CRN Certificate

EC Declaration of Conformity

UKCA Declaration of Conformity

Safety manual with SIL manufacturer's declaration
For details, see the documentation or upon request.
