Sliding Gate Valves

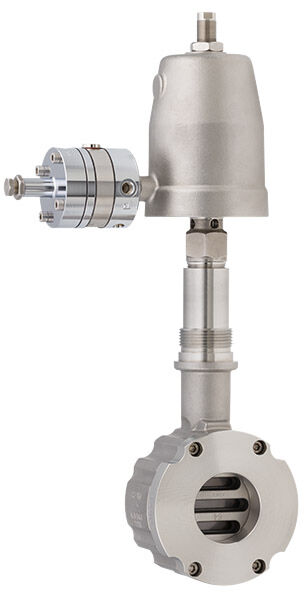

Type 8042 – Pressure regulator

GS3 series

A smart pneumatic regulator for pressure control of steam and gases. External or manual setpoint specification is making the compact design of valve and controller. Compressed air as supply energy is required.

  • Size

    Size:

    1/2" - 6"

  • Pressure

    Pressure:

    145/580 psi

    ANSI #150, #300

  • Material

    Material:

    Stainless steel

    Body CF8M

    Cover 316L

    Carbon steel

    Body WCB

    Cover 316L

  • Temperature

    Temperature:

    Media temperature: -14 °F up to 446 °F

    Special versions available on request.

Connection

Wafer type design
Accessories

Metal bellows

Limit switch

Stroke limitation

. . .
Actuator variants

Control range 1 - 15 psi

Control range 7 - 87 psi

Control range 7 - 36 psi
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T1 X Gb

II 2D Ex h IIIC 85°C…350°C X Db
Approvals, certificates and declarations

CRN Certificate

TA-Luft / ISO 15848-1

EC Declaration of Conformity

UKCA Declaration of Conformity

Safety manual with SIL manufacturer's declaration
For details, see the documentation or upon request.
